■ Technology Introduced
(1) Apply to produce nitro compound fertilizer which is conversed by potassium chloride continuously dechlorinate.
(2) Suitable for producing granular organic fertilizer by monosodium glutamate waste liquor, papermaking black liquor and pharmaceutical waste liquor production.
■ System characters
(1)A high degree of automation, try to reduce labor personnel.
(2)Realize device zero discharge of waste water, cleaning mixture after wet dust extraction get recycling concentration and reusing, not only solve the dust pollution problem, but also Reduce raw material cost.
(3)Flexible production formula can effectively improve equipment operation flexibility, and produce a variety of organic and inorganic compound fertilizer products.

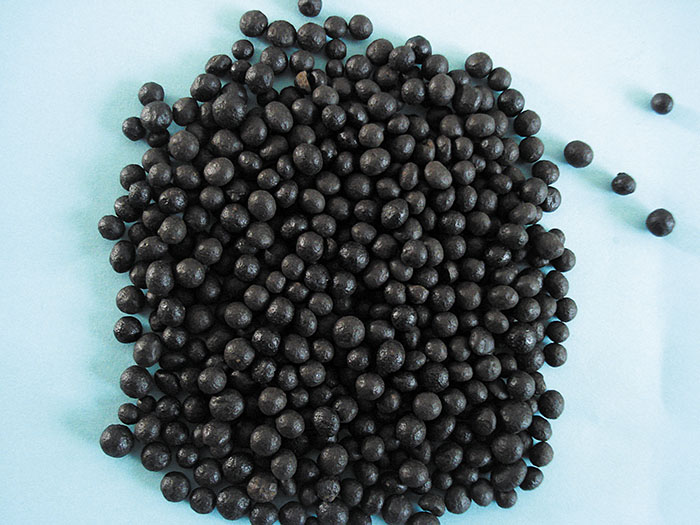

(4)Fertilizer products have low moisture, resistance to agglomerate ability enhance.
(5)Small quantity of system dust, Good production environment.
(6)Equipment selection is mature and reliable, simplicity of operation, easy overhaul, operation, management and long cycle and stable operation.
■ Main Technical Parameters：
Type | HJL3.0 | HJL4.25 | HJL4.5 | HJL4.75 |
Size(cylinder Dia.×cylinder Length) (m) | Φ3.0×12 | Φ4.25×16 | Φ4.5×16 | Φ4.75×18 |
Capacity (t/h) | 5-6 | 8-10 | 11-14 | 16-20 |
Rotary Speed (r/min) | 5 | 4.3 | 4 | 4 |
Slope (Degree) | 1 | 1 | 1.5 | 1.5 |
Operaion temperature（℃） | Inlet | 400-500 | 500-600 | 550-650 | 550-650 |
Outet | 80-90 | 80-95 | 95-110 | 95-110 |
Filing Coefficient (%) | 15/granulating zone 13/drying zone |
Power of motor (kw) | 75 | 132 | 220 | 315 |
外形尺寸 (長L.×寬W.×高H.) (mm) | 14400×3700×4290 | 19000×5700×6100 | 19300×6000×6300 | 2180×6500×6800 |
30000-150000t/y Spray Granulation process & equipments
