■ Application
◎ Apply to the drying and cooling of powdery and granular material in the industry such as compound fertilizer, chemical industry, pharmacy, food, dehydrated vegetable, grain and mineral products etc…For example: compound fertilizer, citric acid, monosodium glutamate, borax, thiamine, turnip shreds, wine chamfer, seed, slag and granulated sugar and so on.
■ Characters
◎ Vibration sources drive with vibration motor, smooth running, easy maintenance, low noise and long life.
◎ Liquid symmetry, no dead space and blow wear phenomenon, can get uniform drying, cooling products.
◎ Good adjustability, applicable wide. Thickness of feed layer, movement speed inside the machine as well as total amplitude alteration all can realize the promise regulation.
◎ Little injury for the material of surface, available for vulnerable material drying. It does not affect the work effect when material granules are irregular.
◎ Adopt the fully closed structure, effectively prevents the cross contamination between material and air, work environment is clean.
◎ High mechanical efficiency and thermal efficiency, good energy saving effect, can save energy 30~60% than common dry device.
■ Main Technical parameters:
| Type | TGZZ3
×0.3 | TGZZ4.5
×0.3 | TGZZ4.5
×0.45 | TGZZ4.5
×0.6 | TGZZ6
×0.45 | TGZZ6
×0.6 | TGZZ6
×0.75 | TGZZ6
×0.9 | TGZZ7.5
×0.6 | TGZZ7.5
×0.75 | TGZZ7.5
×0.9 | TGZZ7.5
×1.2 | TGZZ7.5
×1.5 |
| Area(m2) | 0.9 | 1.35 | 2.0 | 2.7 | 2.7 | 3.6 | 4.5 | 5.4 | 4.5 | 5.6 | 6.75 | 9.0 | 11.25 |
Inlet air tem
| 70-140 |
| Outlet air tem | 40-70 |
Rate of evaporationg
(kg/h) | 20-35 | 35 | 50 | 50-70 | 70-90 | 80-100 | 100-130 | 120-140 | 140-170 | 130-150 | 150-180 | 160-210 | 260-300 |
| Power(kw) | 0.75×2 | 0.75×2 | 1.1×2 | 1.1×2 | 1.5×2 | 2.2×2 | 2.2×2 | 2.2×2 | 2.2×2 | 3.0×2 | 3.0×2 | 3.0×2 | 3.7×2 |

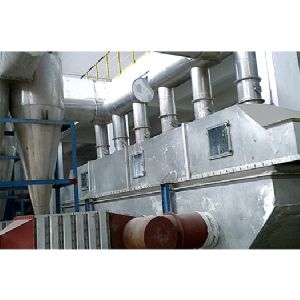

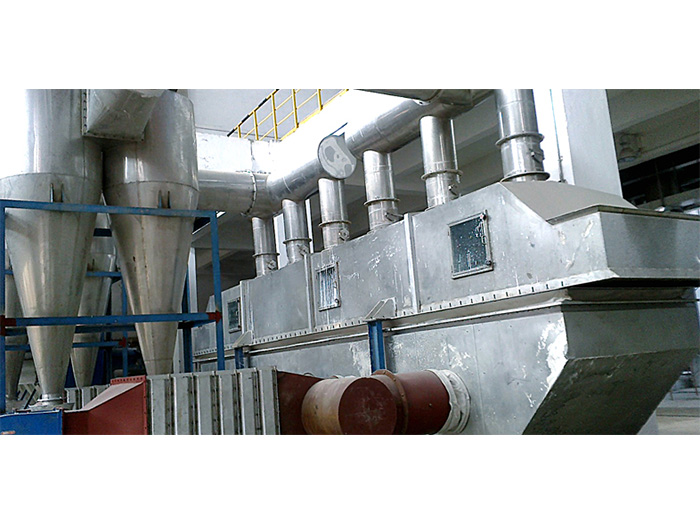

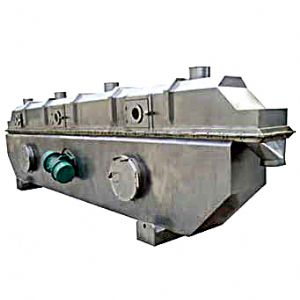

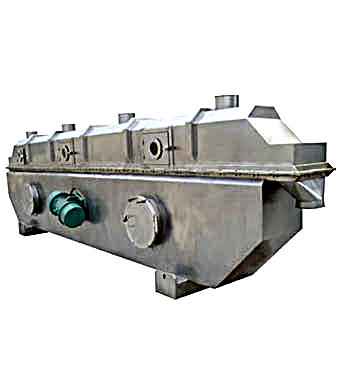

Vibration fluidized bed
